Product Image Gallery

SKU: PS-TT-SPD-0700NPCWUS-W

Base Price:

$110.99

Thermaltake 700W 80+White Smart Non-Modular ATX Power Supply (SPD-0700NPCWUS-W)

Brand	Thermaltake
Series	SMART Series
Model	PS-SPD-0700NPCWUS-W

Type	Intel ATX 12V 2.3
Maximum Power	700 W
Fans	1 x 120mm Fan (1800 RPM +/- 10%)
PFC	Active
Main Connector	24Pin
+12V Rails	Single
PCI-Express Connector	2 x 6+2-Pin
SATA Power Connector	6
SLI	SLI Ready
Haswell Support	Ready
CrossFire	CrossFire Ready
Modular	Non-Modular
Power Good Signal	100-500ms
Hold-up Time	16msec (minimum) within 60% load
Efficiency	80 - 87% efficiency @ 20 - 100% load
Energy-Efficient	80 PLUS Certified
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	12 A (Max.)
Output	+3.3V@24A, +5V@17A, +12V@54A, -12V@0.5A, +5VSB@2.5A
MTBF	>100,000 Hours
Approvals	CE, CB, TUV, UL, FCC
Max PSU Length	140 mm

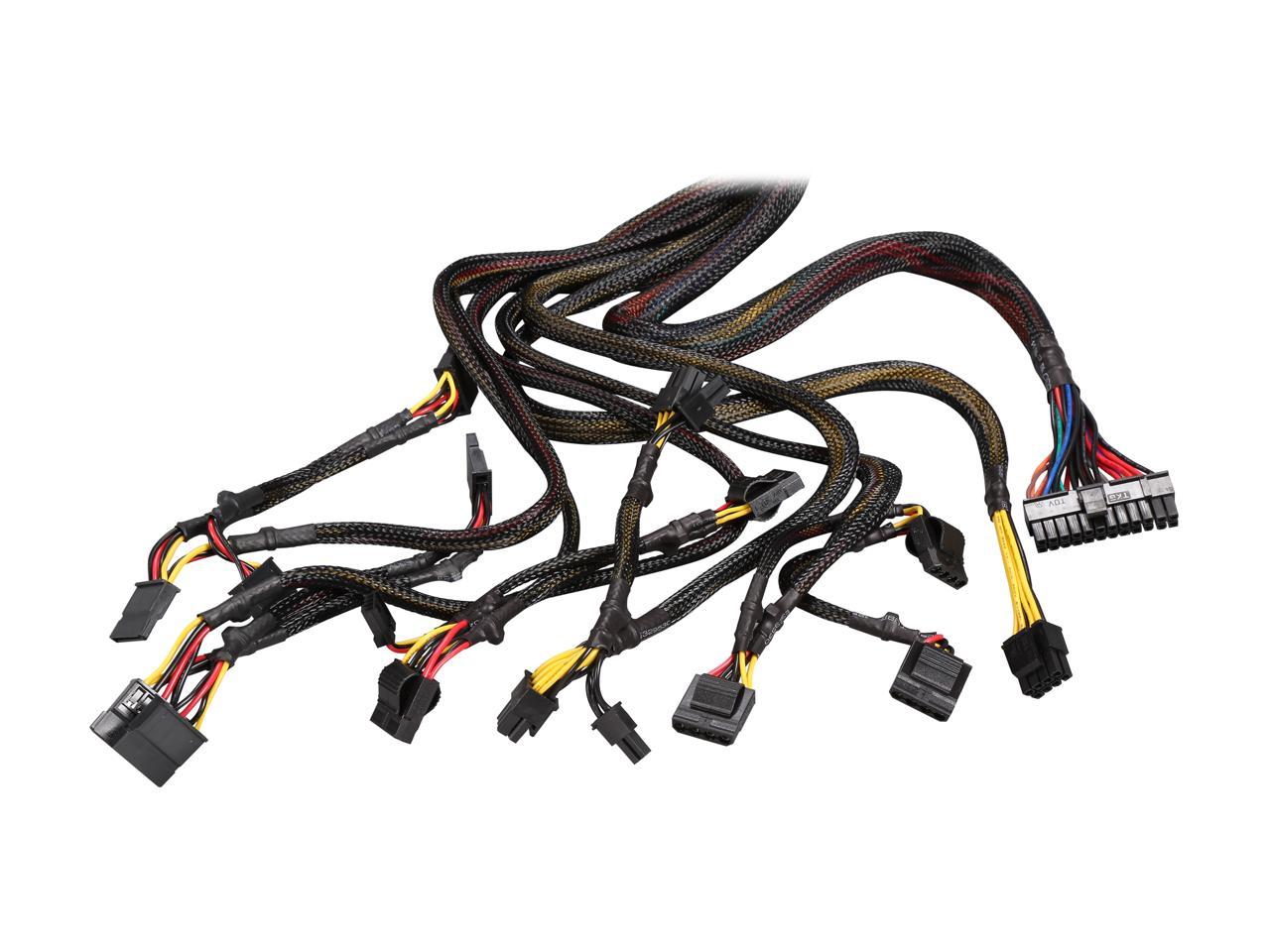

Connectors	1 x 20+4-pin ATX 1 x 4+4-pin EPS 2 x 6+2 PCI-E 6 x SATA 5 x Peripheral 1 x Floppy

Features

Compliance with Intel ATX12V 2.31 & EPS12V 2.92 standards
80 PLUS Certified - 80% efficiency under typical load
Single +12V rail Design
Supports Intel C6 Status for improved efficiency
Ultra-quiet 120mm fan with intelligent temperature control
Hardlined cables for straight forward installation

Dimensions	86.11 mm x 150.11 mm x 139.95 mm
Weight	2.11 kg

PFC	Active
SLI	Ready
CrossFire	Ready

Condition	Brand New
Packing	Retail Pack
Warranty	QS: 7 days DOA replacement; Thermaltake: 5 years
